Stone Column Design in Dublin: Improvement on Glacial T…

Dublin’s expansion from a Viking settlement along the Liffey to a modern European capital has left a complex underground legacy. The city centre sits on a mix of glacial till, alluvial gravels, and pockets of soft estuarine silt — the infamous Dublin Black Clay — deposited during the Holocene sea-level rise. Docklands redevelopment and suburban infill routinely encounter this material. The Black Clay is highly compressible, with undrained shear strengths often below 20 kPa near the surface. Traditional shallow footings simply do not work here. Stone column design bridges the gap between deep piling and over-excavation, providing a cost-effective Improvement solution. Our team applies methods aligned with Eurocode 7 to handle these variable deposits. For projects near the Dodder or Tolka floodplains, we often combine stone columns with a CPT test to map the soft layer thickness with precision, ensuring the column toe reaches competent glacial till.

A correctly designed stone column grid can halve the consolidation time of Dublin Black Clay while limiting differential settlement to under 25 mm.

Process overview

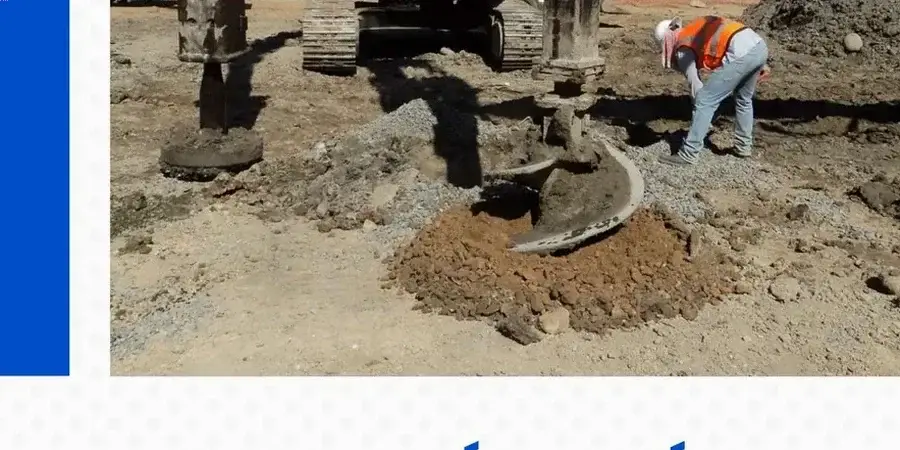

Dublin’s maritime climate — mild, damp, with roughly 750 mm of annual rainfall — keeps groundwater tables high across much of the urban area. This near-surface saturation complicates any vibro-displacement work. Stone column design here must account for lateral confinement that varies drastically between the dense Dublin Boulder Clay and the alluvial lenses. Columns typically range from 600 mm to 900 mm in diameter, installed by wet top-feed or bottom-feed vibroflots depending on whether the goal is drainage or load-bearing. We specify aggregate gradation per IS EN 14731:2004 and verify stiffness through post-installation modulus tests. The technique reduces total settlement and accelerates consolidation by creating vertical drainage paths — a key advantage in low-permeability silts. Where basement excavations are planned, we coordinate the column grid with the deep excavation support system to avoid interference between vibroflot rigs and propping frames.

Local context

A seven-storey apartment project near the Grand Canal basin hit an unexpected lens of organic silt at 4.5 metres depth. The preliminary SI had missed it between boreholes. The original design called for pad footings on engineered fill, but the silt’s compressibility would have produced over 60 mm of differential settlement — enough to crack brickwork and bind lift shafts. The contractor halted excavation and brought us in. We redesigned the foundation zone with a 1.8-metre triangular grid of 700 mm stone columns penetrating into the stiff till at 7.2 metres. Post-treatment plate load tests confirmed a deformation modulus three times that of the untreated silt. The structure is now five years in service with zero movement. That near-miss underscores why Dublin’s patchy Quaternary geology demands an experienced stone column design team who can adapt on site without losing programme.

Technical data

Parameter	Typical value
Applicable standard	IS EN 14731:2004 (Execution of special geotechnical work — Ground treatment by deep vibration)
Typical column diameter	600 – 900 mm
Max treated depth	Up to 15 m (dependent on vibroflot capacity)
Aggregate size range	25 – 75 mm clean angular stone
Design approach	Unit cell method (Priebe) or finite element analysis
Target stiffness modulus	E_v2 ≥ 50 MPa (plate load test)
Settlement reduction ratio	n = 2.0 to 3.5 depending on area replacement ratio

Common questions

What does stone column design typically cost for a Dublin site?

For a typical residential plot in Dublin, our design and supervision fees range from €1.470 to €4.250, depending on the treated area, number of columns, and testing requirements. The installation cost is separate and quoted by specialist vibro contractors.

How do stone columns perform in Dublin Black Clay?

They work well as long as the clay has sufficient undrained shear strength — generally above 15 kPa — to provide lateral confinement to the column. In weaker material we may recommend a geotextile encasement to prevent bulging and loss of aggregate into the surrounding soil.

Is a trial zone always necessary before full production?

For any project with more than 50 columns, yes. We specify a trial area — usually 4 to 6 columns — to confirm the installation parameters, aggregate consumption rate, and to run a preliminary plate load test. This de-risks the main works and gives the contractor confidence in the production targets.
